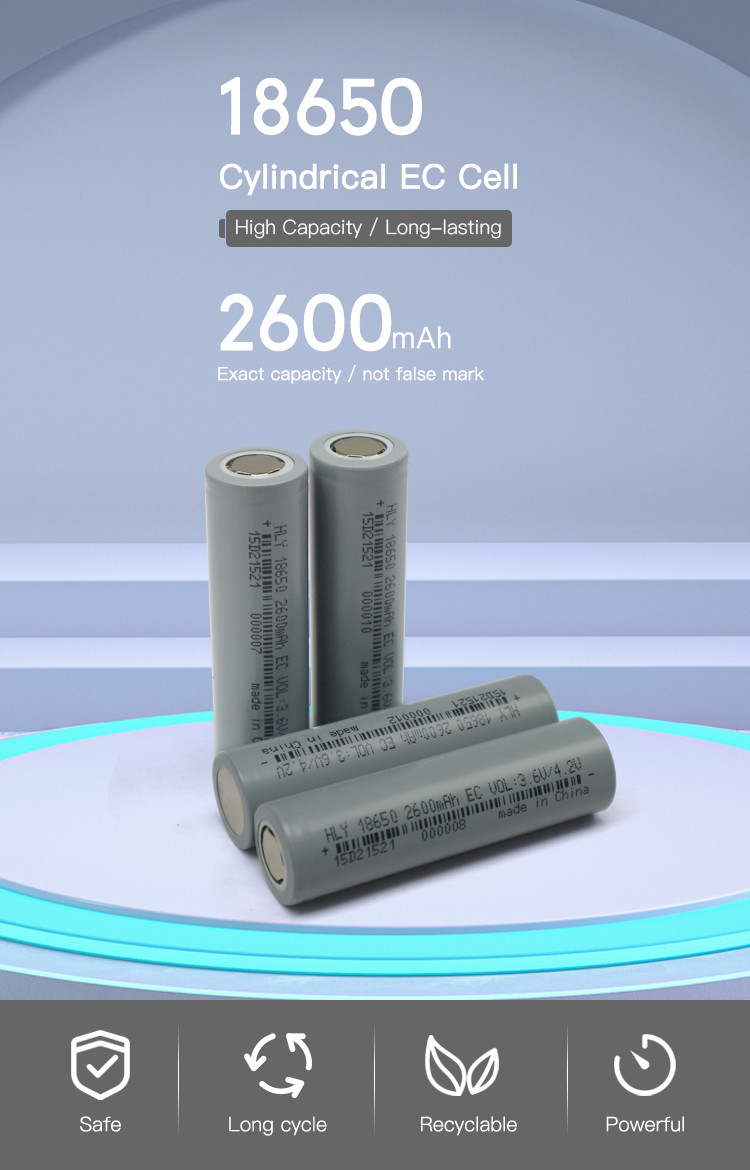

High Capability 3.6v Lithium Ion Battery 2600mah 18650 For Energy Storage
Brand characteristics:
1. Long-Life Technology
Based on the balance point design of energy density and cycle performance, innovation was made in material formula and process to improve the cycle performance of the product. The cycle life of 26650 ternary power battery reached 1500 times or more than 80%, which realized the application High cost performance.
2. Safety performance design
Increase the cost, optimize the design of battery separator and electrolyte, continuously improve the level of safety error proofing, and effectively reduce the probability of battery safety problems.
3. Consistency assurance
The comprehensive application of high-density battery technology, high-voltage battery technology, integrated charging technology, energy system full equalization technology, new energy and other life-cycle collaborative technologies has a high technical content.
Applications:
1. Energy storage: solar and wind energy save systems, solar streetlights.
2. Power Supply: Power supply source for communication base station and communication industry and emergency power, utility power supply,
3. EV: Pure & hybrid electric vehicles, recreational vehicles, chill cars, electric wheelchair, motorcycle, bicycle, balance bikes, scooter, skateboard, grass trimmer or lawn mowers.
4. Home electronics: Electric tool, mobile audio, electric shaver, power bank, POS machine, bright torch light, mobile power supplies, electronic nebulizer, manless aerial vehicle, etc.
Specification:
| ITEM | SPECIFICATION |
| Nominal capacity | 2600 mAh@0.5C |
| Minimum capactiy | 2600 mAh@0.5C (Discharge the cell from 4.2V to 2.75V by 0.5C current) |
| Nominal voltage | 3.6V |
| Charging voltage | 4.2 ± 0.05 V |
| Discharg ending voltage | 2.75 ± 0.05 V |
| Standard charge current | 0.5C (1300mA) |
| Standard discharge current | 1C (2600mA) |
| Max charge current | 1C (T ≥ 10℃) 0.5C (10℃>T≥0℃) |
| Max continuous discharge current | 3C (27℃ ≥ T ≥ 23℃) |
| Max pulse discharge current | 5C (27℃ ≥ T ≥ 23℃) |
| Max recommended charge and discharge cell body temperature | Charge: 0~45℃ Discharge: -20~60℃ |
| Maximum short term allowable charge and discharge cell body temperature. Charging and discharging at these conditions will shorten cell cycle life. | Charge:60℃ Discharge: 75℃ |
| Internal resistance | ≤22mΩ (AC Impedance, 1000Hz) |

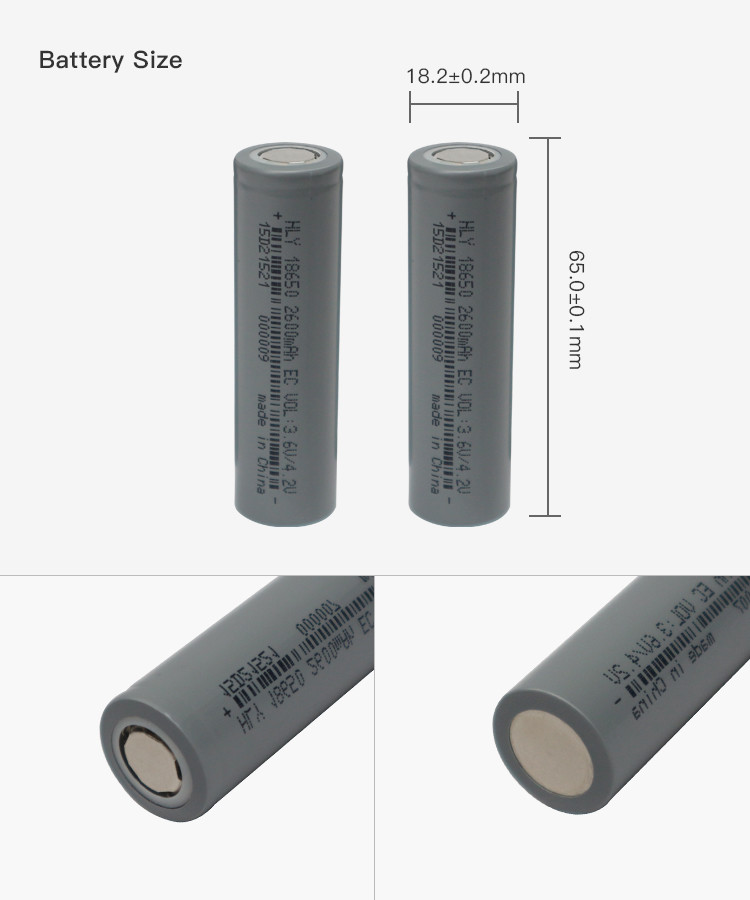

| Cell dimension | Height: 65.1 mm Diameter: 18.4 mm |
| Weight | ≤ 48g |
How to choose a high quality lithium battery?
1. A grade battery cell, with full capacity for each battery cell.
2. BMS: water proof, antistatic, over current protection, over voltage protection, with sealed case.
3. Water proof case, plastic or steel case available by customer's requirement.
4. High grade raw material.
5. 12 hours & 3 rounds charging/discharging test.
| Common Questions |
| No. | Questions | Answers |
| 1 | Are you a factory or company? | Yes, we are a factory with 10 years experience, specialize in 18650 and 26650 lithium ion battery, lifepo4 battery. |
| 2 | Do you have MOQ for your batteries? | OEM orders MOQ is 10,000 pcs. We can also accept small quantity for neutral orders, moq of 18650 battery is 400 pcs, and 26650 battery is 192 pcs. |
| 3 | Can I print my own logo on the product? | Yes, we welcome OEM and ODM orders. Please inform us formally before our production and confirm the design firstly based on our sample. |
| 4 | What about the lead time? | Sample needs 1 day, neutral order of mass production needs 3-7 working days. If OEM of bulk orders, it would be about 7~15 days. |
| 5 | What's the payment term? | T/T, L/C, Paypal are acceptable. Mostly 30% T/T in advance, the rest paid before shipping. |
